parameter

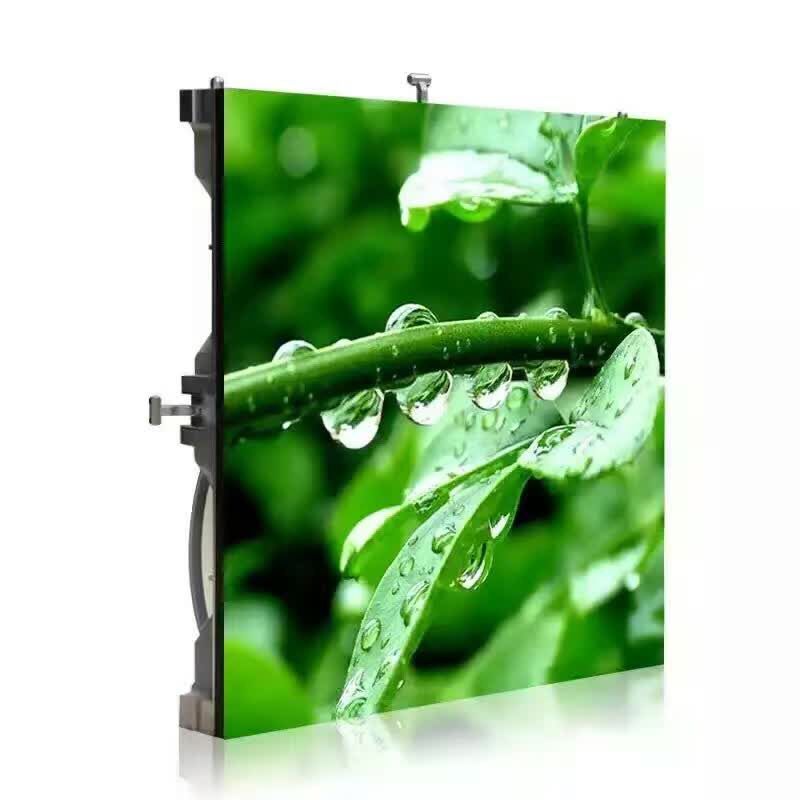

Indoor PH3.91 full color LED display
Pixel pitch(mm)
3.91
Pixel density(point/㎡)
65536
Lamp type configuration
1R1G1B
Lamp type
SMD2121
scanning method
1/13 Scan
Best viewing distance
5—15m
Display Angle°
Horizontal 120°, vertical 120°
Brightness (cd/㎡)
1300
Gray scale
16384
Refresh rate (Hz)
1200
Frame rate (Hz)
60
Brightness adjustment method
Manual / automatic / programmable
Module size (mm)
(L×H)250×250
Module resolution(point)
64×64
Module weight (Kg/Piece)
0.55
Standard cabinet weight (Kg/single)
8.5
Standard cabinet size(mm)
500×500,500×1000
Working voltage (V)
AC 220
Average power consumption (W/㎡)
280
Maximum power consumption(W/㎡)
800
Maintenance mode
Before and after maintenance
IP level
IP30
Working environment ( ℃/%RH)
-20 ~+50, 10~90
Storage Environment ( ℃/%RH)
-40 ~+85, 10~90
Working life (H)
45000
Note: For reference only,Welcome to inquire, The final interpretation of belonging ShenZhenRuiShiMing Technology Co.,LTD
